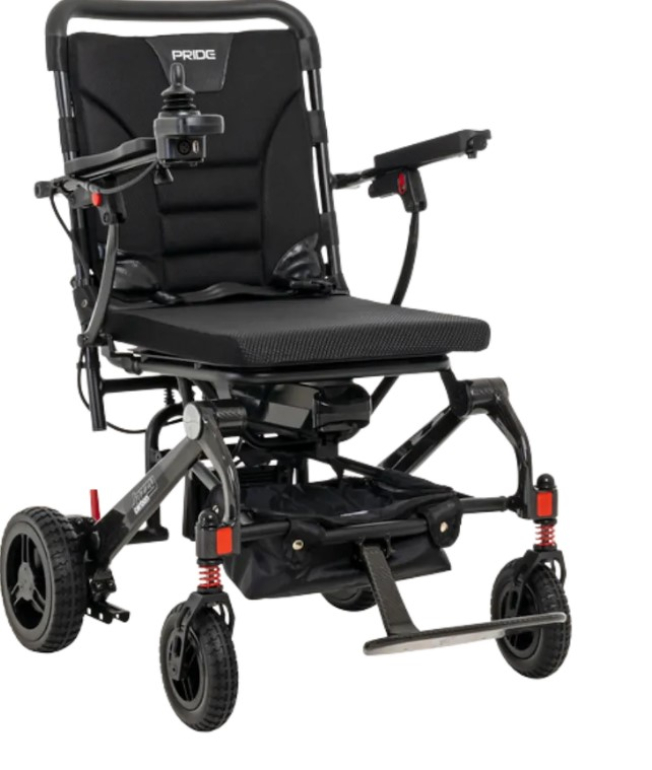

This is the most portable Jazzy® yet. In just seconds, the Jazzy Carbon folds flat for easy transport, and unfolds again to get you moving. View more
Ultra-light but exceptionally strong, this power wheelchair is your ultimate travel companion. Weighing less than 40 lbs. (without battery), the Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds.
Included in your package:
One year in-home Service Agreement included.Specifications
| Prod Spec | Prod Spec Value |
|---|---|
| Weight Capacity | 300# |
| Turning Radius | 24" |
| Overall Length | 37" |
| Overall Width | 24" |
| Maximum Speed | Up to 3.7 MPH |
| Ground Clearance | 2" |
| Front Casters | 7" |
| Drive Wheels | 8.5 |
| Drive Wheels | 8.5" solid |
| Seat - Width x Depth | 17" x 17" |
| Seat to Floor | 20.25" with standard cushion |
| Range Per Charge | Up to 9.3 miles |
| Weight (w/o batteries) | 39.6# |
| Weight - Batteries | 4# |
| Battery | 24V, 12AH lithium-ion |
| Battery Charger | 2 amp lithium-ion off board |
| Warranty - Frame | Limited lifetime |
| Warranty - Electrical Control/Lever System | 1 Year limited |
| Warranty - Motor/Drive System | 1 Year limited |
| Warranty - Batteries | 1 Year limited |
- Quick disconnect joystick with built in USB charger
- 24V, 12AH (288WH) airline compliant lithium battery
- Ultra lightweight, carbon fiber frame
- Compact base easily folds and unfolds
- Padded seat back with storage pocket and soft, removable seat cushion
- Under seat storage
- Adjustable belt lap
- Standard mesh cup holder
