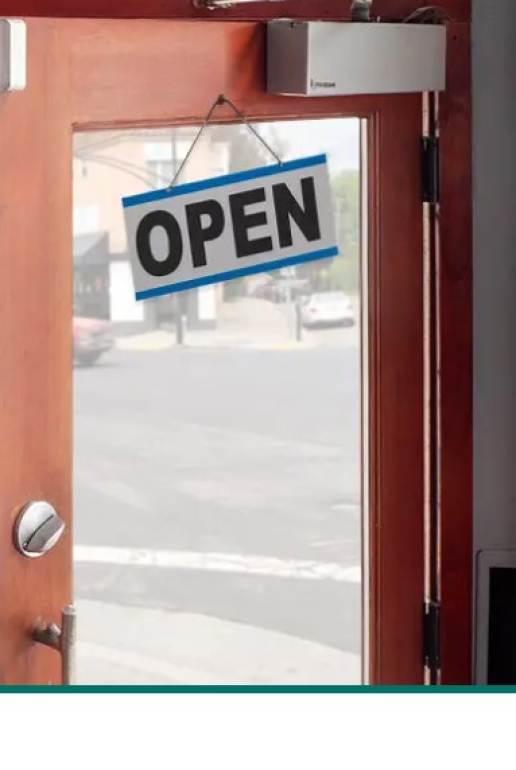

The Open Sesame Model 233 automatic door opening system is perfect for use in commercial applications such as storefronts, schools, apartment lobby doors, or restrooms. View more
The automatic door opener is door mounted for inward and outward opening of doors in either right-hand or left-hand hinged configurations.
Specifications
| Prod Spec | Prod Spec Value |
|---|---|
| Operator | 16-24 VAC/DC |
| Wall Transformer - Input | 115 VAC, 60 Hz |
| Wall Transformer - Output | 24 VAC, 20 VA |
| Battery | 12V DC, 1.2Ah SLA |
| Motor | 12V DC, 1.5A |
| Clutch | Constant torque slipping disk, 15 in-lbs |
| Supply for Unlatching Device | 12V DC, 1A |
| Dimenions | 2-5/8" x 4" x 14-1/8" |
| Weight | 10# |
| Material | Steel housing |
| Material | Powder coated finish |
| Warranty | 5 Year Limited |
- Adjustable hold-open feature allowing the door between 5 and 30 seconds for passage
- Unit will stop when encountering an obstruction during an operating cycle
- Internal battery power supply to provide powered operation in the event of external power failure
